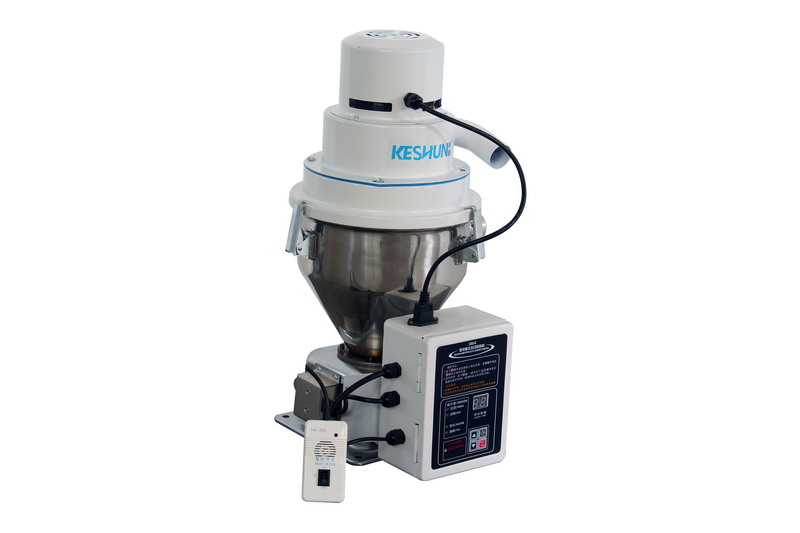

MODEL KSAL300G
DETAIL

FEATURES:

Small footprint & light,to be placed directly on other machine or for auto loading.

Microcomputer comtrolled.

Alarm for overload and lack of material.

High-speed rectificative motor of small footprint and strong suction force for new material for KSA-300G.

Cable-control,easy to set and control.

Filer available



Model 300G
Motor Type Carbon brusg
Specifications 1KW/1.3HP 1Ф
Conveying capacity(kg/hr) 3.5
Loading distance(m) 7.5
Static wind pressure(mm/H2O) 1300
Reservoir volume(L) 6
Conveying tube inner dim(mm) Ф38
Attached hoses(mm) Ф38mm*3.5m 1pcs
Dimensions(cm) 34*34*59
Net weight(kg) 12
